| Management number | 230374813 | Release Date | 2026/06/18 | List Price | US$220.00 | Model Number | 230374813 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

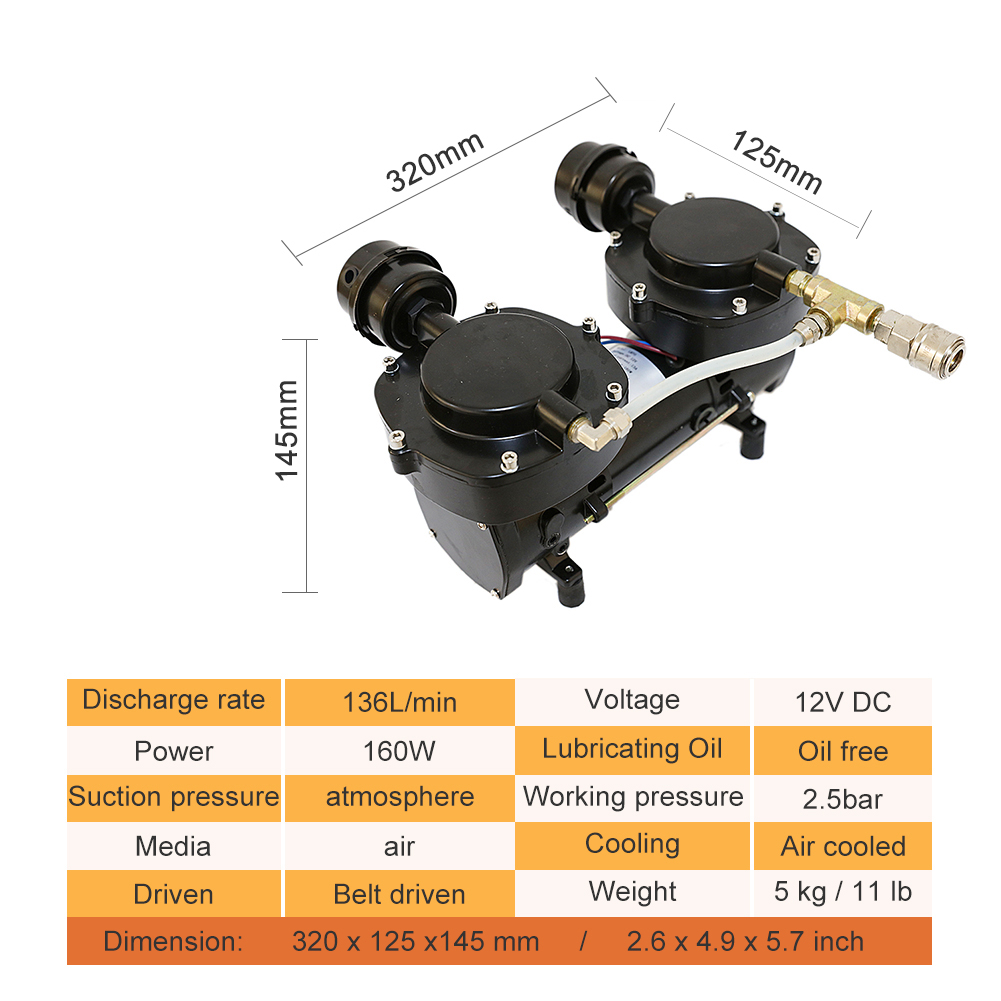

<p>Charging Rate: 85-100L/min<br>Suction pressure: atmosphere<br>Working pressure: 2.5bar<br>Media: air<br>No.of stage and cylinder: 2<br>Voltage:12v<br>Power:160w<br>Cooling: air cooled<br>Driven: belt driven<br>Shout down:manual stop<br>Pressure indicate:Gauge<br>Protection :Safety valve<br>Filtration:water separator and oil filter<br>Lubricant: ISO grade 100/150 SAE 40/50 synthetic compressor oil<br>Dimension:320mmx125mmx145mm<br>Weight:5.5kg<br>Noise:Less than 65 dB(A)<br> <br>Please read this operation manual carefully before installation and operation<br> <br>This series are high pressure air compressor. It compresses atmosphere air go to pressure 2.5 bar, after be purified and separated by the filter and separator.<br>It discharge clean air accords to GB18435-2001 breathing air standard. It is widely be used for breathing of diving and fire fighting; paintball PCP shooting and other high pressure filed industries by its reliability, durability and portability.<br> <br>■ Check the electric voltage in nameplate is same as your local electric supply<br>■ Check the lubricate oil has been put in before running<br>■ Increase rated pressure setting is forbidden<br>■ There is potential danger of pipe burst or connect fitting blow off under high pressure, please avoid body too near compressor when it running<br>■ if there are no auto stop function, don't leave compressor until it reach rated pressure and shut down it by manual</p> <p>Product List: 1x 50 inch Hose, 1x Respirator, 1x 3rd Lung Snorkeling Air Compressor The system allows people breathing air directly through the air tube and the respirator after entering the water<br>Hookah Dive: 12V Storage Battery Drive ( Not included ), Power: 160W, Pressure: 2.5Bar, Max. Flow: 136L/Min, Inlet diameter: 1/4"<br>Long Hose Gauge Scuba Diving: The product has a displacement of 135L/min, which can meet one person's underwater operation. It discharge clean air accords to GB18435-2001 breathing air standard.A diaphragm oil-free scuba compressor that can be used for snorkeling<br>Dive Inspection: It is a diaphragm oil-free scuba gas supply compressor,air filter can reduce noise and filter impurities, breathing is more comfortable with 2-stage filtration system<br>Standard Service: HPDAVV provided with one-year warranty,the air end with two-year warranty and lifetime maintenance. We also have some of the best air supplier are able to support the after-sales services</p>
| Cfm | 4.8 |
|---|---|
| Maximum psi | 36 psi |
| Power type | Battery |
| Number of stages | 2-Stage |
| Air compressor pump type | Oil-free |
| Brand | Hpdavv |
| Features | Portable |
| Volts | 12 V |

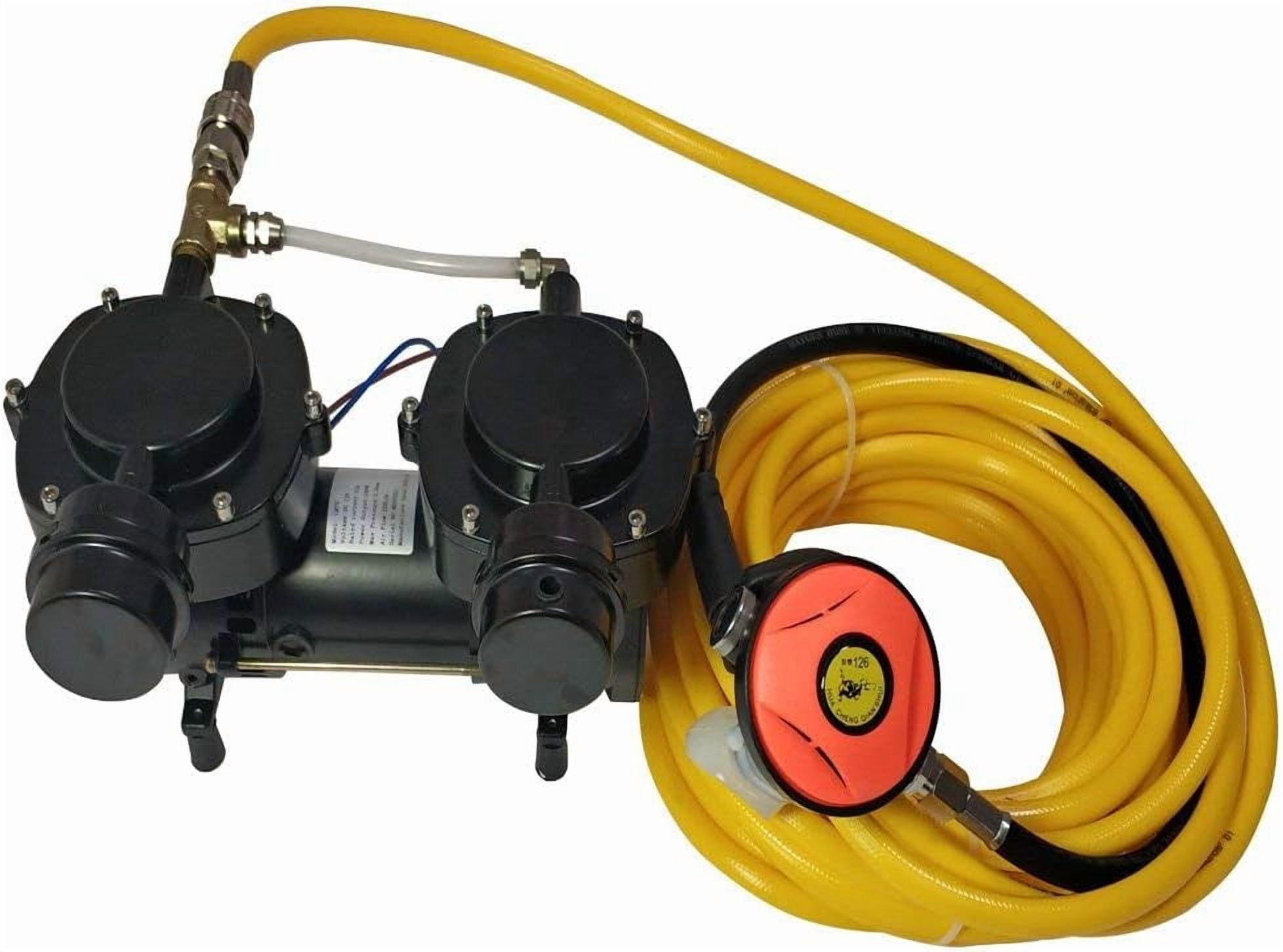

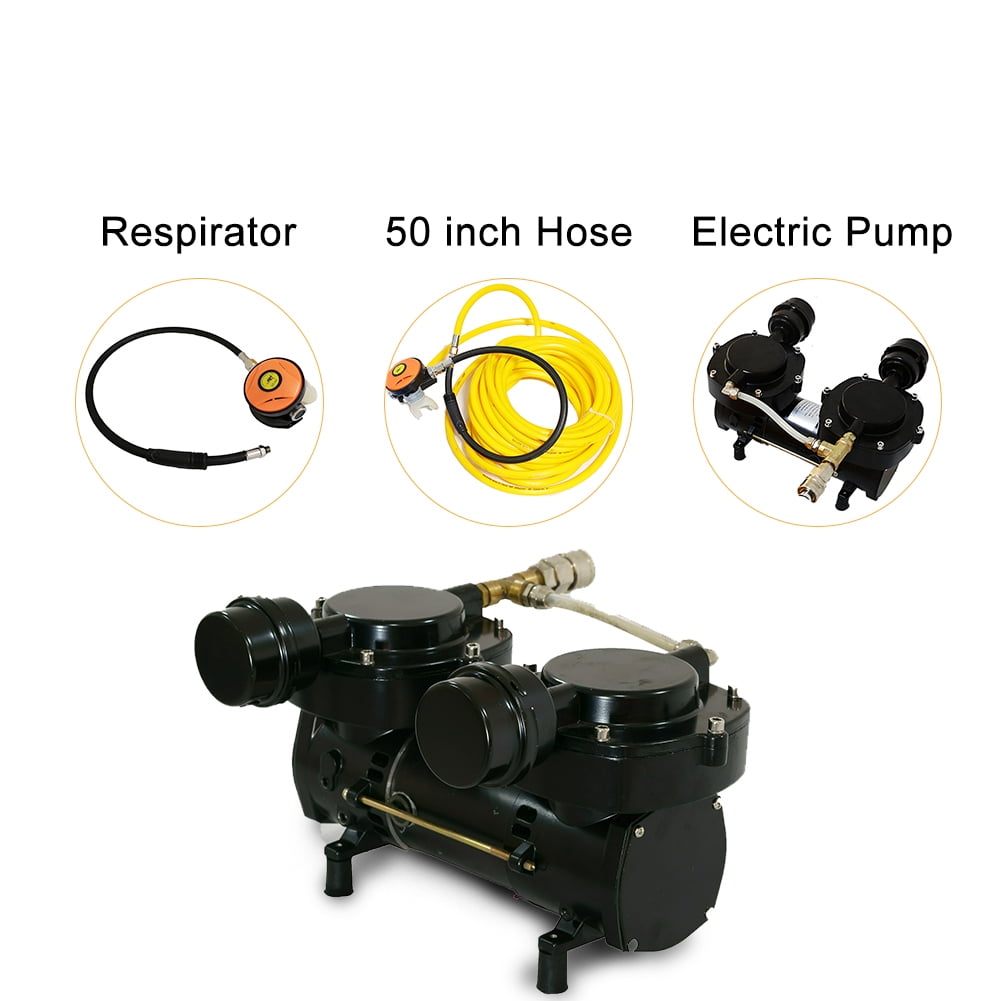

| Accessories | 1x 50 inch Hose, 1x Respirator, 1x 3rd Lung Snorkeling Air Compressor |
| Weight | 11 lb |
| Color | Black and Yellow |
| Cord length | 50 in |
| Watts | 160 Watts |
| Assembled product height | 145 mm |
